Designing of Chemical Injection Skids – 33 No’s for Leading Oil & Gas Company, UAE

Skid
Project Scope

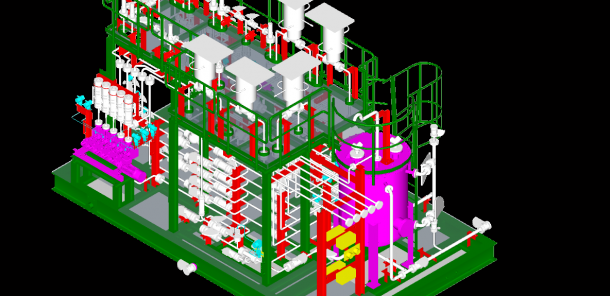

  • 3D Modeling of 33 Chemical Injection Packages in PDMS
  • Layout Engineering of Skids, Piping, Equipment , Structural and Electrical & Instrument Cables
  • Preparation of Piping GA drawings and structural Fabrication drawings
  • Fabrication Isometrics
  • Multidisciplinary Engineering Activities (Piping, Mechanical, Electrical, Instrumentation & Structural )
Systems and Tools
  • PDMS
  • AutoCAD, Naviswork
Inputs
  • PID and Piping Material Specification
  • Instrumentation Hook up drawings & Preliminary Layout
Outputs
  • General Arrangement Drawings
  • Isometrics
  • Nozzle Orientation Drawings
